Flevoland
|
 |
|
|
MW Antenne Flevoland - coaxial feeder line
|
|
|
|
 |
|
|
|
 |

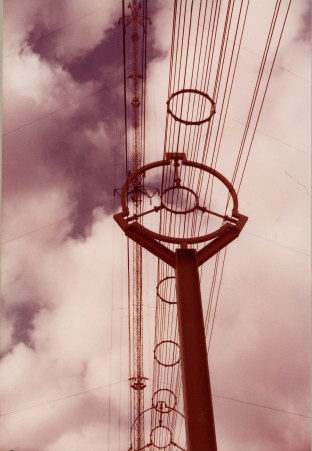

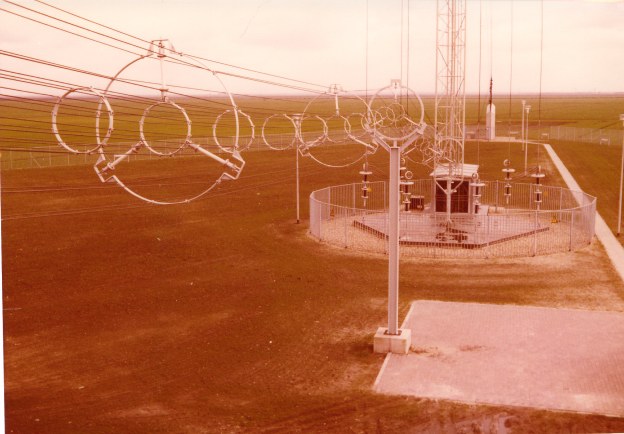

These photos show details of the coaxial feeder line, which is designed for a power of 2 x 600 kW. The characteristic impedance is 85 ohms. Within the mast the feeder line continues up to the feeding point at a height of 90 m.
The ladder inside of the the mast, suspended by insulators, is the inner conductor, and the mast the outer conductor.
|
|
|
 |
 |
|
|

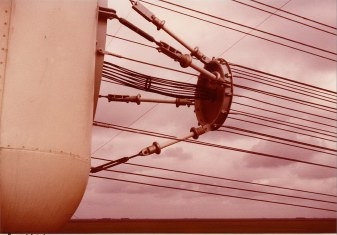

The connection between feeder line and glass insulator of feed through
|
|
