MW Lopik
|
|
 |

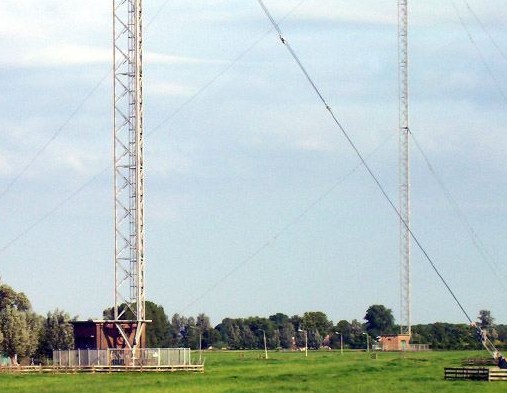

MW masts 192 m (left) und 165 m (right)
Historical photo taken from www.middengolf.info/lopik.htm
with the friendly permission by Peter Vrakking
The 165 m mast was detonated in 2004.

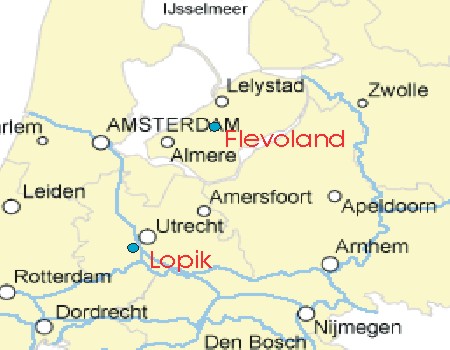

The MW compound in Lopik was the spare station for the MW antenna system in Flevoland. It was also and it is still the transmitting site for the frequency 675 kHz.
|
(The MW antenna system in Flevoland is designed for the frequencies 747 kHz and 1008 kHz with the maximum carrier power of 600 kW of each.)
Until its detonation in 2004 the Lopik mast of 165 m was available for transmtting the 1008 kHz (120 kW) .
The Frequeny 747 kHz with the power of 120 kW could be transmitted from the same mast simultaneously.
As an option the frequency 747 kHz with the power of 120 kW could be switched to the second mast of 192 m.
Furthermore it was possible to radiate the frequency 675 kHz instead of 747 kHz from the 192 m mast.
Actually the frequencies 747 kHz and 1008 kHz are radiated from the MW antenna system in Flevoland wiith mostly 400 kW each and the frequency 675 kHz is radiated with 120 Kw from the mast of 192 m in Lopik.
The tuning elements of the masts of 165 m and 192 m were/are provided with the filters for all frequencies which are present on the station.
|
|
|
 |

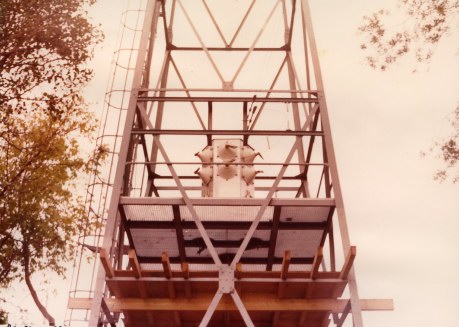

Outdoor switch switching between the two antennas 165m and 192 m.
|
 |

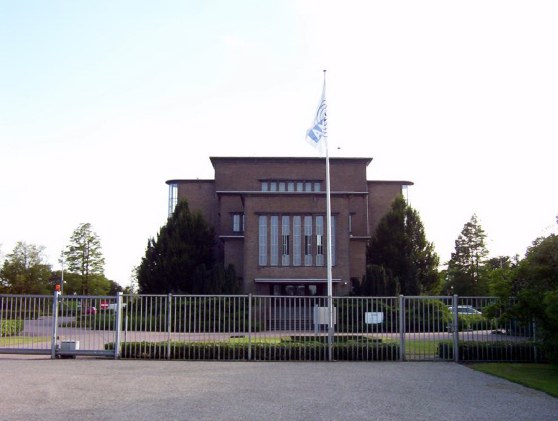

The transmitter building
(photo taken from www.middengolf.info/
lopik.htm with the friendly permission by Peter Vrakking)
|
