	MW Peshawar 1170 kHz 100 kW

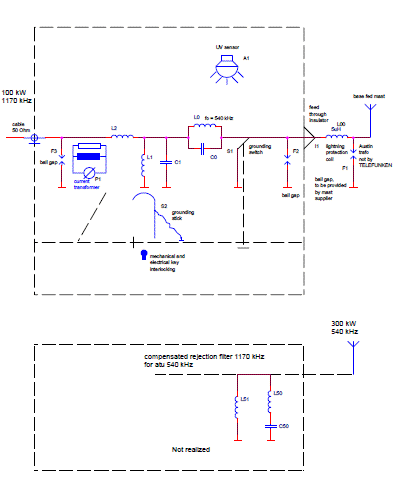

		Antennn tuning unit including filters for the antenna nearby on 540 kHz.

	Rejection filter for 540 kHz. There is a second mast for 540 kHz  close to the mast for 1170 kHz.

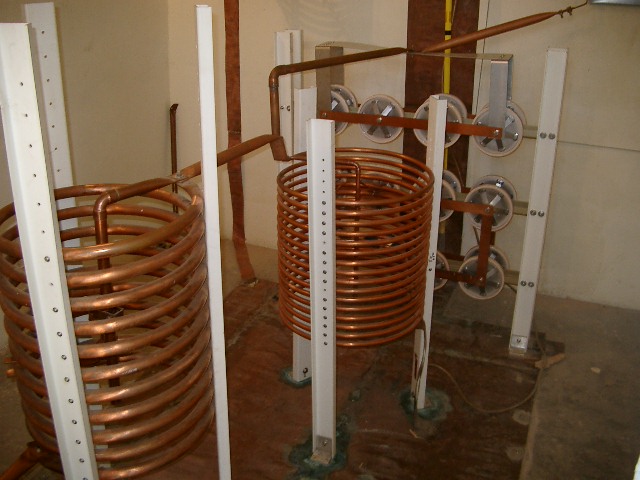

	antenna tuning elements
	capacitor rack

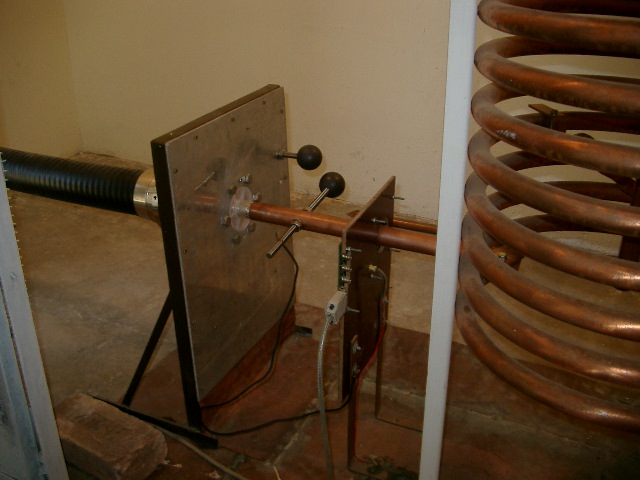

	current transformer spark gap cable support and termination cable
