	MW Antenna Murcia 855 kHz, 300 kW and 567 kHz, 25 kW (RNE)

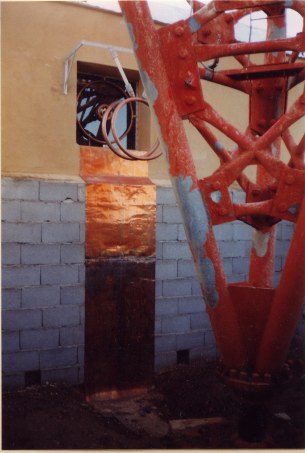

		Feed through insulator of glass seen from outside with lightning protection coil at the base of the mast. The height of the mast is 186 m.

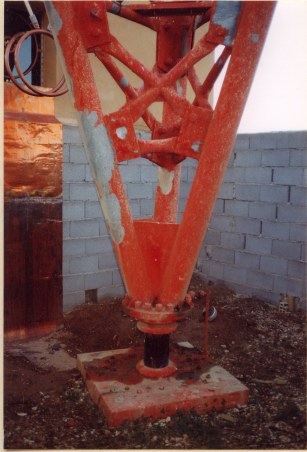

Insulator at the base of the mast Feed through insulator of glass with lightning protection coil.

MW antenna Murcia, maps of Spain  -------     Arganda    Pozuelo

	The MW station is located North West of Murcia.
	Church of Santa Maria in Murcia

Stadtplan / Kartengenerator

Las Torres de Cotillas near Murcia Google map may be enlarged, diminished, shifted, switched to satellite view etc.. Find your own view like below about 100 m West of the marker.

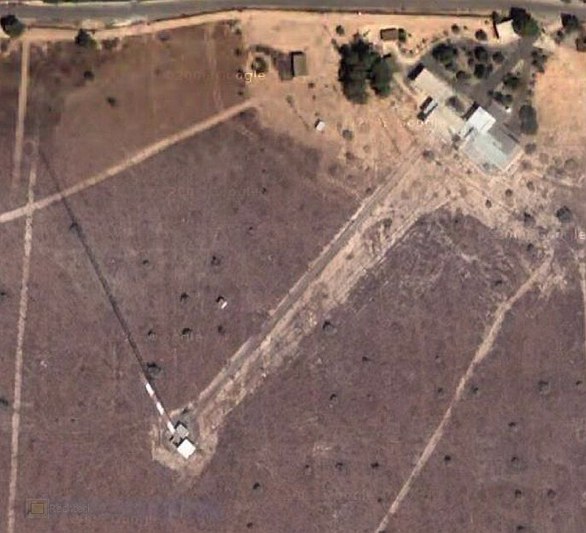

The satellite photo of the antenna Antenna mast (186 m) with antenna tuning unit hut at its base on the left side. The transmitter building on the right side. The spacing between mast and transmitter building is about 200 m. The open feeder line cannot be seen due to the unsufficient resolution of the photo.
