MW antenna Lopik 165 m - diplexer
|
![]() |
![]() |
|

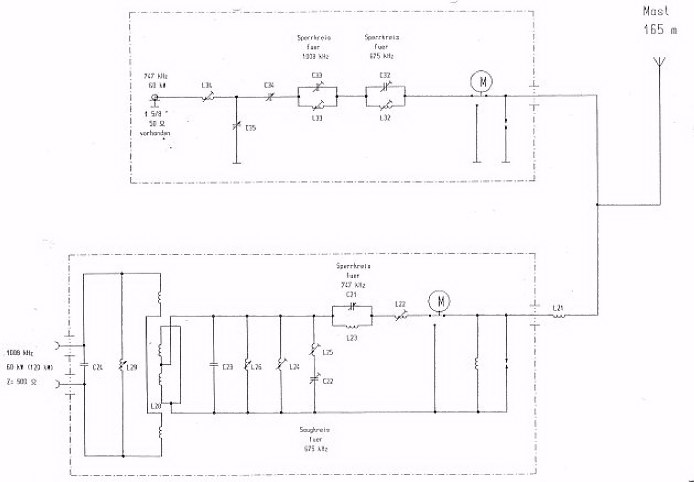

The Lopik diplexer is dimensioned for the frequencies 747 kHz (60 kW) and 1008 kHz (120 kW) and it is used as spare for the radio station in Flevoland. In both branches of the diplexer there is a filter for the frequency 675 kHz, which is radiated from the neighbouring mast of 192 m.
|
![]() |
On this page photos of the diplexer at the base of mast of 165 m are shown.
The mast 165 m was detonated in 2004, these are historical photos.
|
![]() |
![]() |

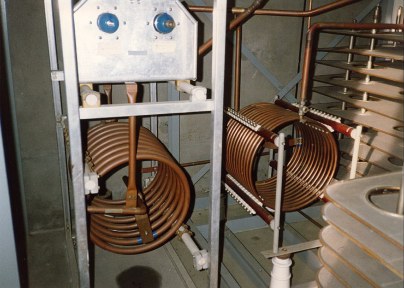

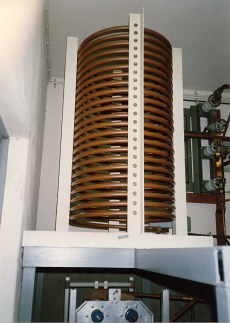

Tuning elements
|
![]() ![]() |
![]() |

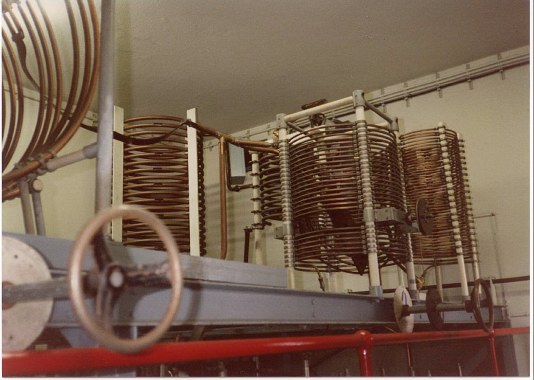

Tuning elements
|
![]() |
![]() |
![]() |

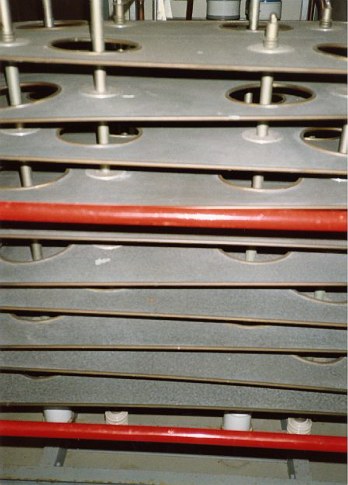

Plate condensor
|
![]() |
![]() |

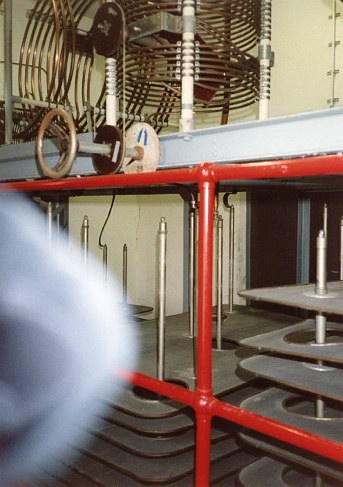

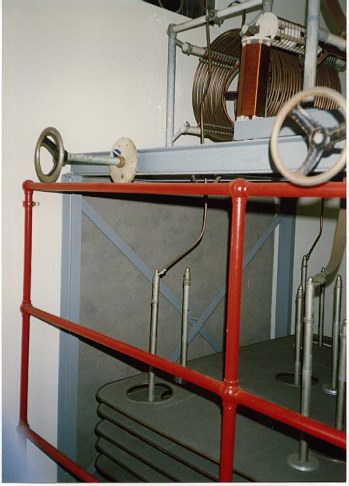

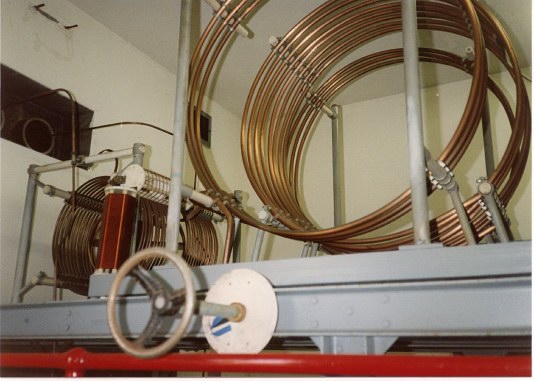

Tuning elements
|
![]() |
![]() |
![]() |
![]() |
![]() |

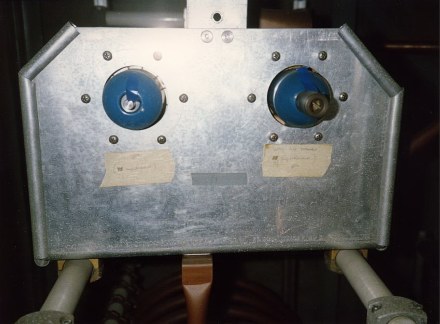

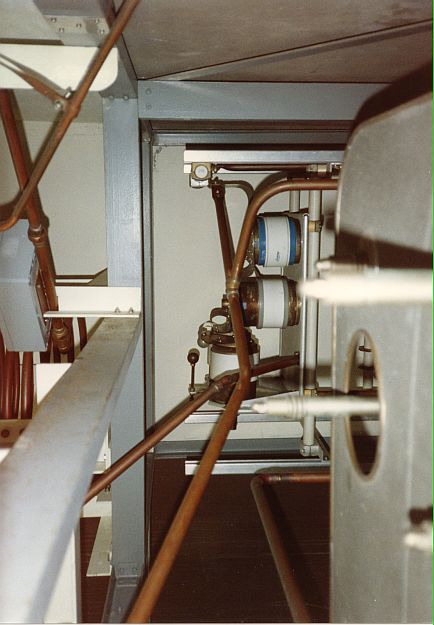

Above and left:
variable vacuum
condensors
|
previous next
|
