Provisional MW antenna Lingen 792 kHz, 5 kW

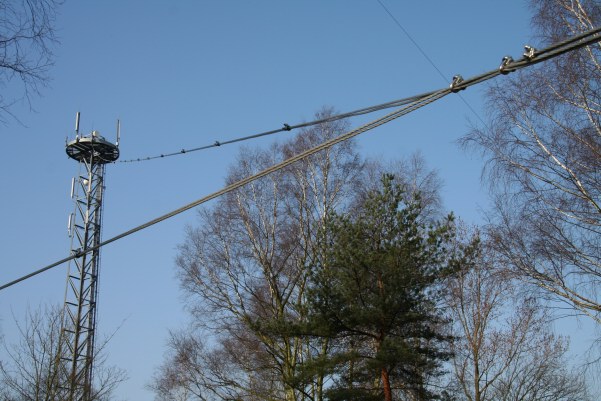

	Details of the antenna The rope antenna is fixed to the tower. The horizontal part leads to the antenna tuning hut.

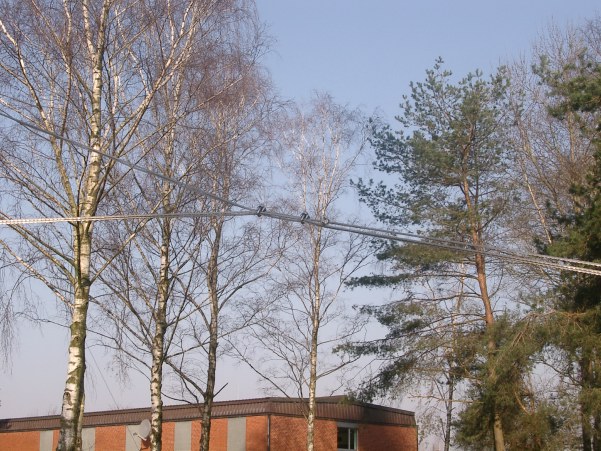

	The inflexion point of the aerial

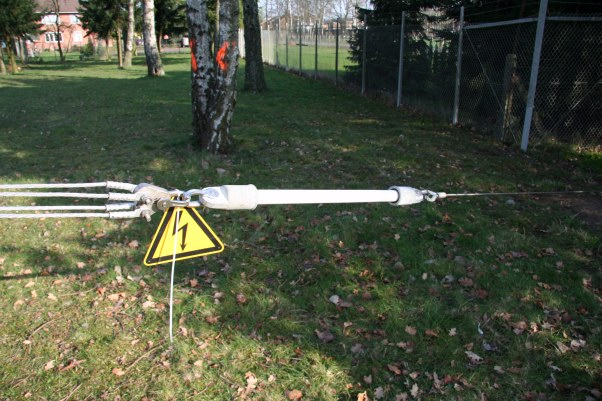

	The dead end rod insulator between the inflexion point on the left side (see above) and the screw anchor on the right side (see below).

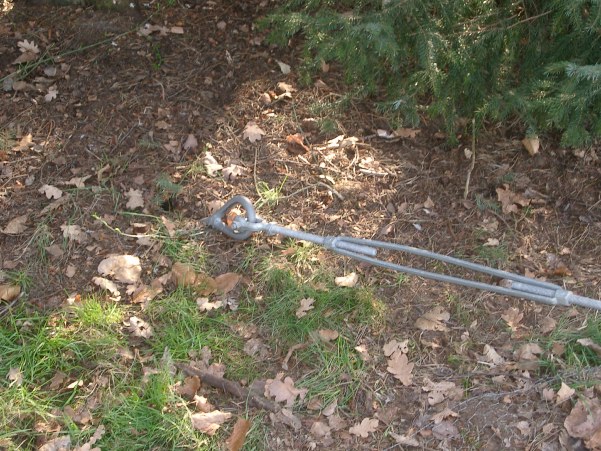

	The screw anchor
