Burg - K antenna - remodelling of antenna tuning unit 1575 kHz

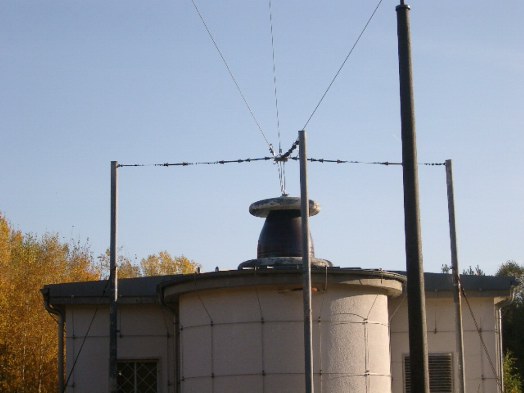

	The antenna tuning hut with the big feed through insulator on top of the roof. The ropes of three T- antennas are connected in parallel to the center of the feed through insulator.

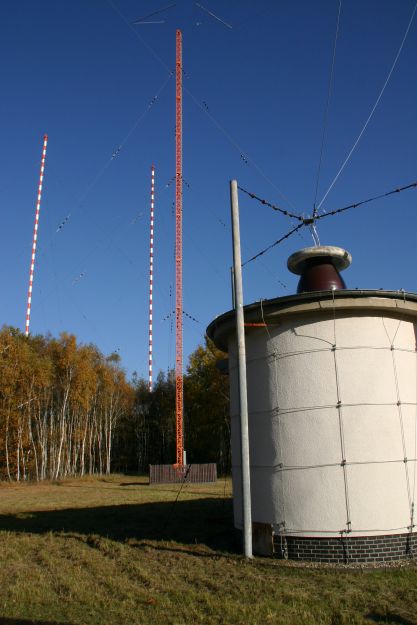

On the right the big feed through insulator on top of the roof of the antenna tuning unit. In the middle one of the three masts of the "K" antenna On the left side the masts I1 and I2. The mast on the right (I2) was detonated in 2006.

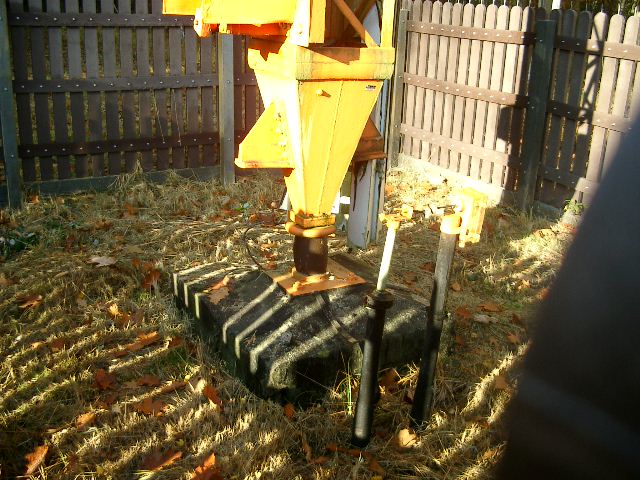

Base of one of the three masts
