Burg K antenna
|
 |
 |
||
|
|
|
Burg - K antenna - remodelling of antenna tuning unit 1575 kHz
|
|

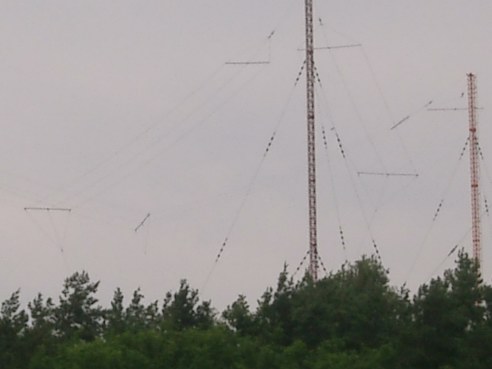

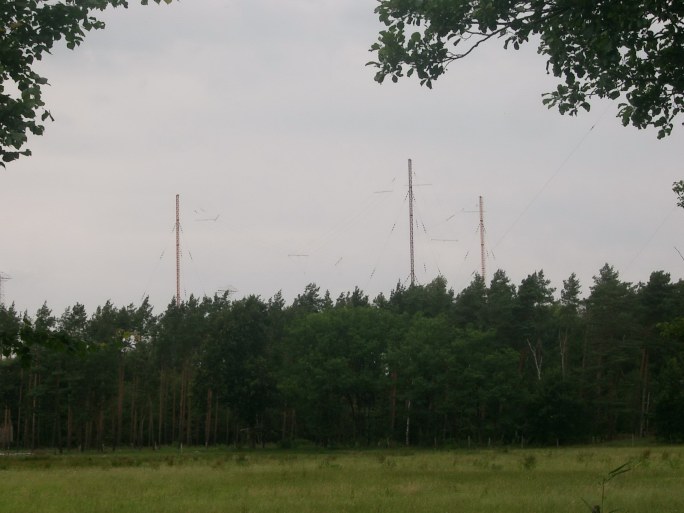

Panorama view of K antenna with its tree masts and its three T- antennas in paralell
|
 |
|
|
 |

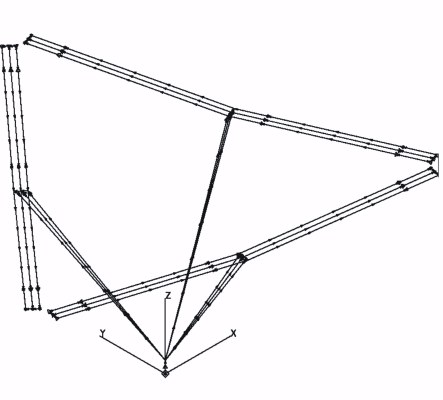

The computer model of the antenna without masts
Three vertical antennas each with a top load are are connected in parallel at the base (feeding point)
|
|
 |

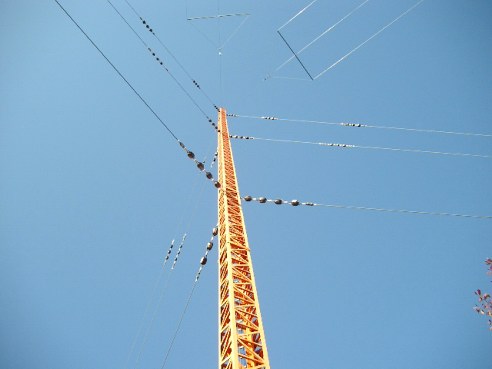

This photo shows all wires of the computer model.
In addition the supporting masts with their guys and the elaborate design of guy insulators can be seen.
|
|
 |

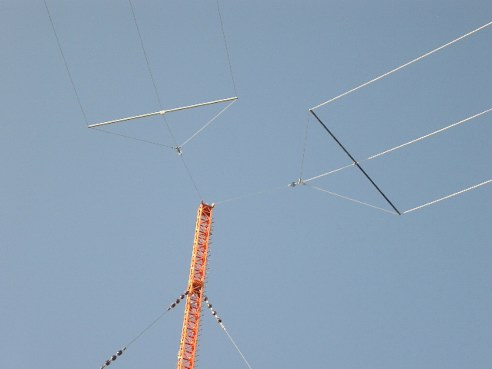

Two top loads are fixed to the top of every supporting mast with insulators.
|
|
 |
Two top loads are fixed to every supporting mast. This photo shows the insulators at the top load clearly.
|
|
 |

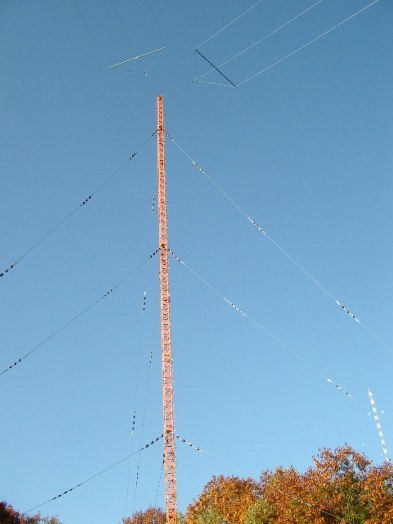

Left: One of the three masts supporting two top loads.
In the background: the "I" mast.
|
 |
||
Guy foundation
The guy insulation consists
of egg insulators.
|
|
 |
The city of Burg (English: castle) is located West of Berlin near the city of Magdeburg and the river Elbe. A perfect location for an antenna system with good ground conductivity.
|
The city of Burg (English: castle) is located West of Berlin near the city of Magdeburg, the capital of Saxony- Anhalt.
|
|
K antenna
The exact location of the antenna tuning hut.
|
|
 |

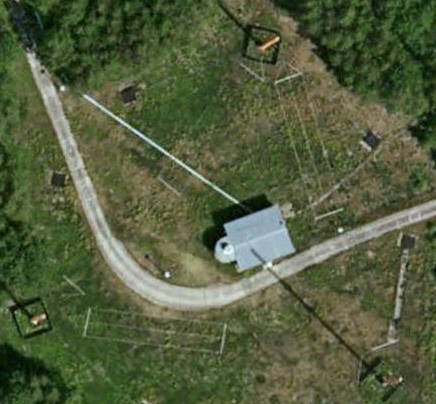

K antenna:
this modified photo by google map (see above) shows an excerpt with the three masts, the three top loads, and the antenna tuning hut in the centre.
|
 |
Burg (English: castle) is a town near Magdeburg, the capital of Saxony- Anhalt. |
