The mill of Britz

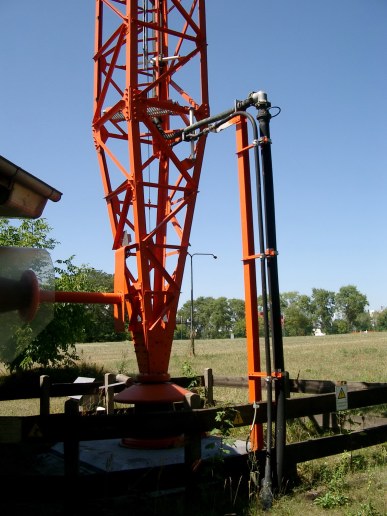

MW antenna Britz - Base of South East mast
Feeding cable of FM antenna

The feeding cable of the FM antenna is fixed to the mast via insulators up to the height of lamba/4. At this point the cable is connected to the mast electrically.
Mast and cabel represent a line with a short circuit at the length of lambda/4 having an infinitive reactance at its input. Therefore the base impedance of the antenna remains unchanged by this line.
MW antenna Britz - Base of SE- Mast

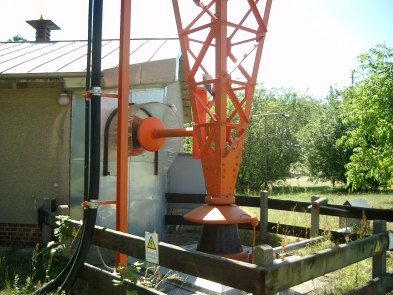

Base of the South East mast
On the left side the feeding cable for the FM antenna.
