Bremen MW  Oberneuland   6EN
 previous   next
<       >
Bremen
1     2    3    4    5    6

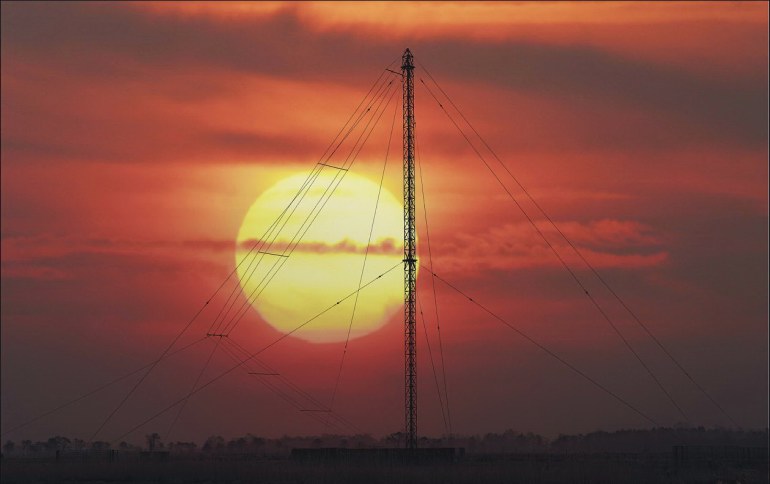

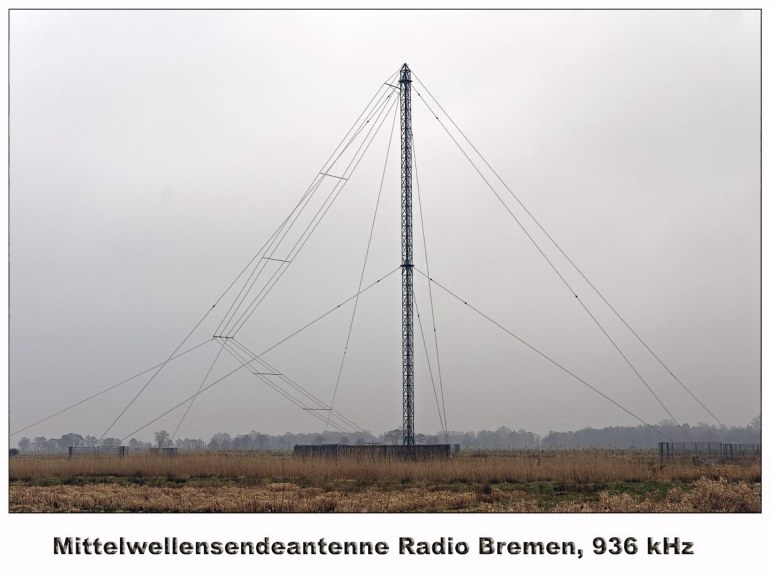

MW antenna Bremen - Two impressive photos by Otto Hitzegrad - otto.hitzegrad@nexgo.de
                                        with thanks to Udo Hoffmann
Horizontal pattern

The horizontal pattern is nearly omnidirectional. There is a small gain of a few of tenth of dB into the direction of the cage .
Vertical pattern

A simple monopole radiating vertically has a sharp null at the angle of 0°. Due to horizontally radiating antenna parts the null is filled up.
Gain

The gain of such an antenna is approximately 0 dB referred to a short vertical monopole. The slightly higher gain caused by the small directivity of the horizontal pattern is reduced by the filling up of the vertical pattern leading to a total gain of -0.03 dB. In general the gain of medium wave antennas are referred to a short vertical monopole.
