Summerhill LW 252 kHz
|
 |
|
|
Feederline and Antenna Tuning Hut
|
|
|
 |

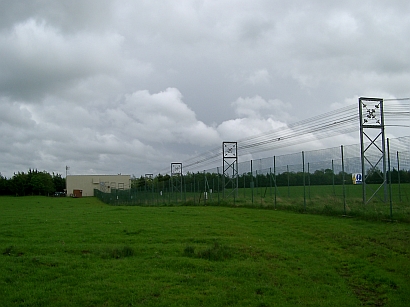

The feeder line between transmitter building and mast
|
|
 |

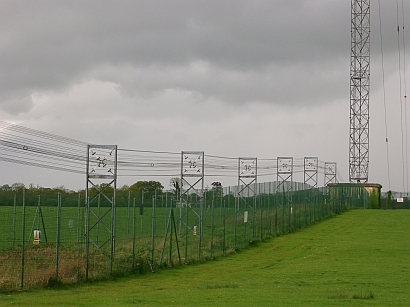

The feeder line between mast and transmitter building (in the background).
|
|
 |

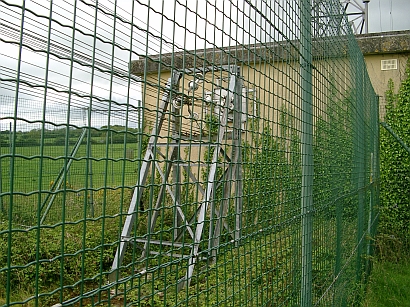

The fixation of the feeder line to the transmitter building.
The extension network (ENW) for DRM is located in the building and connects transmitter and feeder line.
|
|
 |

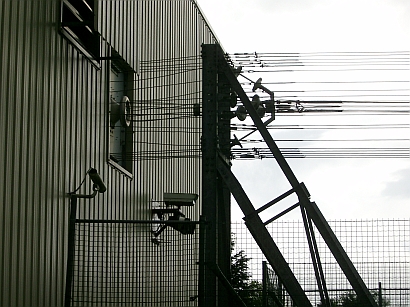

Support of feeder line
|
|
 |
The antenna tuning hut with the feed through for the feeder line.
Protection fence.
|
|
 |

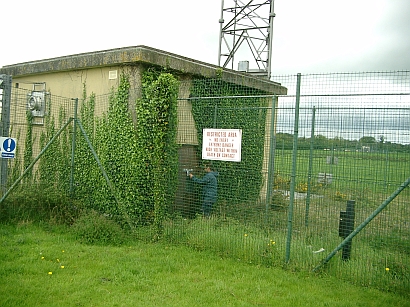

The antenna tuning hut with with access door to the tuning elements.
|
|
 |
The feed through to the antenna seen from outside of the hut.
On the right side parts of the mast
|
|
 |

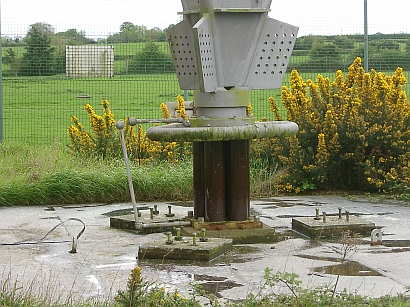

The base of the mast showing a combination of rod insulators, spark gap, and corona ring.
|
