Rugby
|
 |
|
Rugby 100 kHz, 50 kW - raising of T antenna
|
|
 |

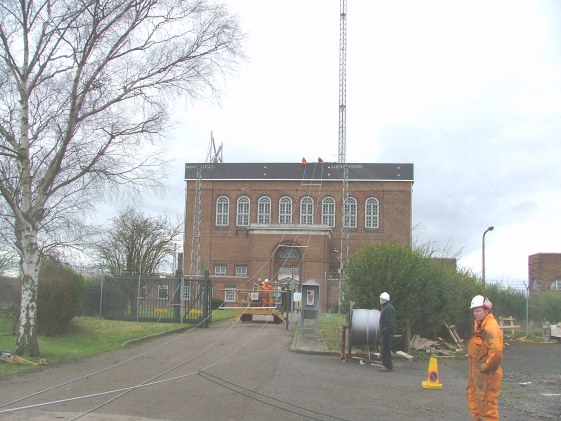

Second horizontal section of T being raised
|
 |

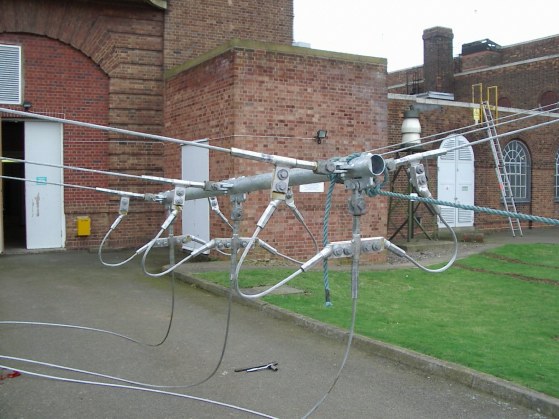

center spreader, where the vertical line ( vertical part of the T) is connected
|
 |
Mast 1

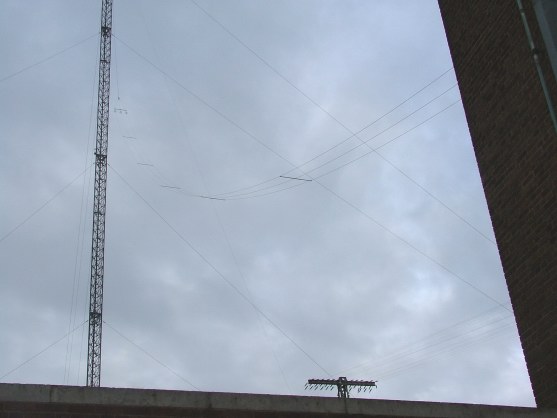

Horizontal section between mast and roof
|
|
 |

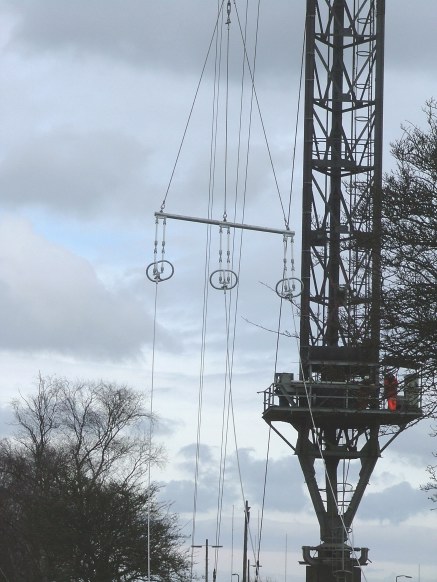

End spreaders and Insulators being raised at Mast
|
|
 |
Antenna lowered to fit vertical line
|
|
 |

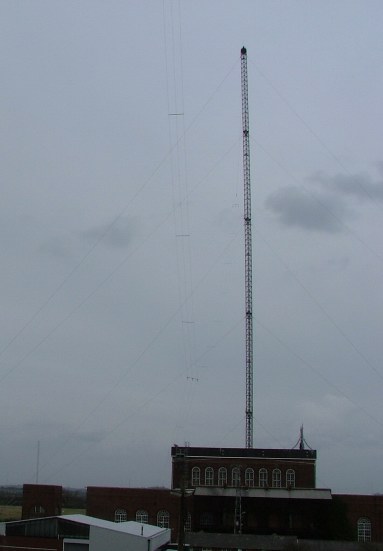

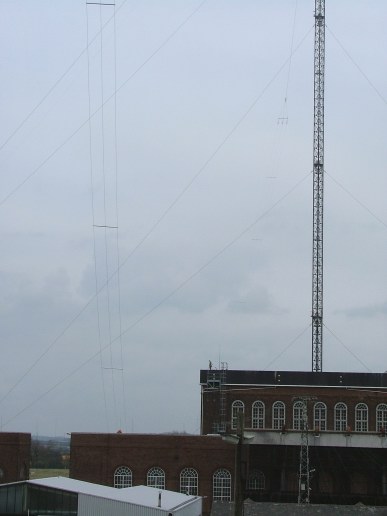

Raising the vertical section
|
 |

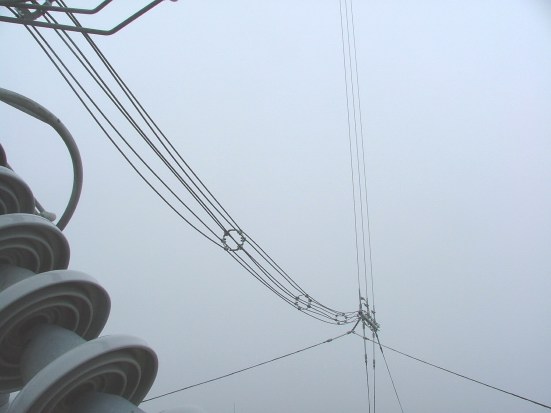

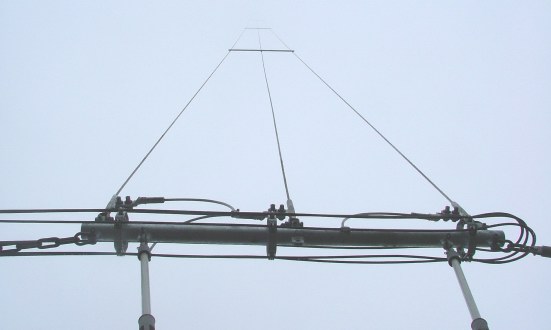

Bottom spreader of the vertical line from below
|
 |
Bottom spreader of vertical line

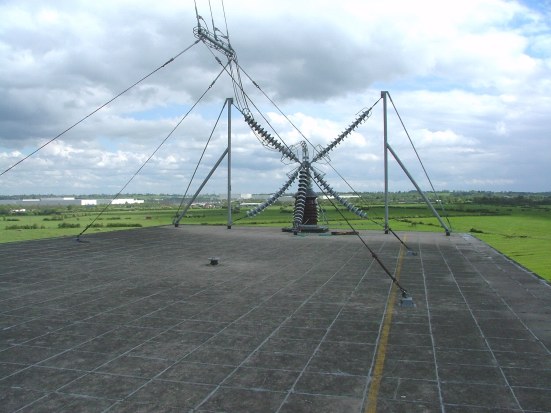

connection to the leadout insulator (output of antenna tuning unit)
|
 |
Bottom spreader of vertical line
connection to the leadout insulator (output of antenna tuning unit)
|
