Treinta y Tres, Uruguay by Paolo Fallini, Uruguay
|
||||||
 |
Treinta y Tres, Uruguay
Frequency: 1390 kHz
Power 5 kW
Height of mast: 54 m
Tunipolo
A cage of six ropes is arranged around the mast.
|
 |
Treinta y Tres, Uruguay

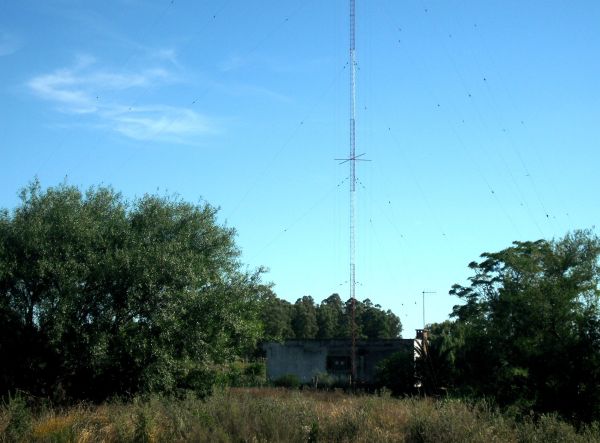

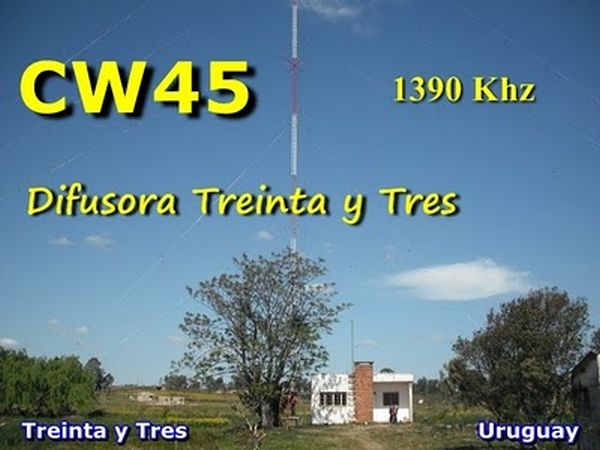

Mast with antenna tuning hut
|
 |
 |

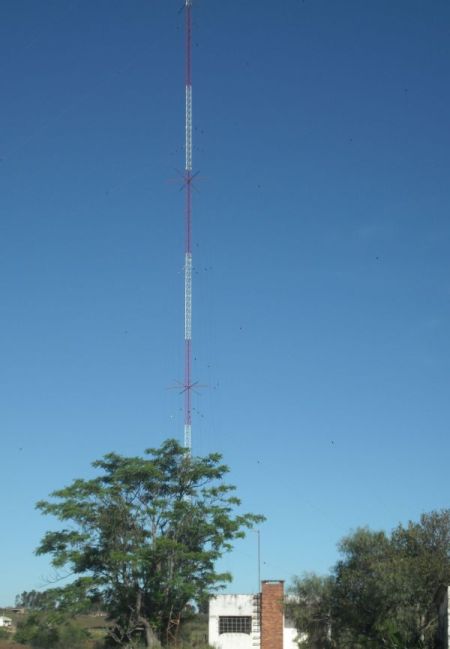

Mast with antenna tuning hut
from the opposite side
|
 |

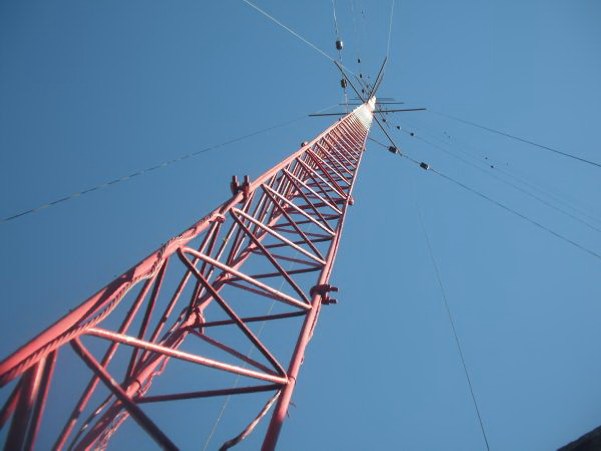

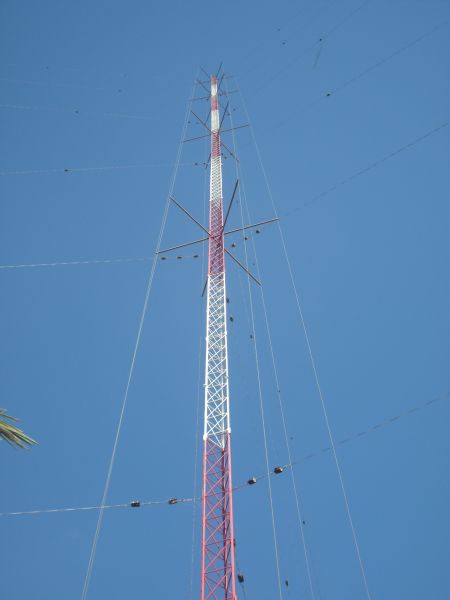

Mast with cage of six ropes.
Stays with egg insulators
|
 |

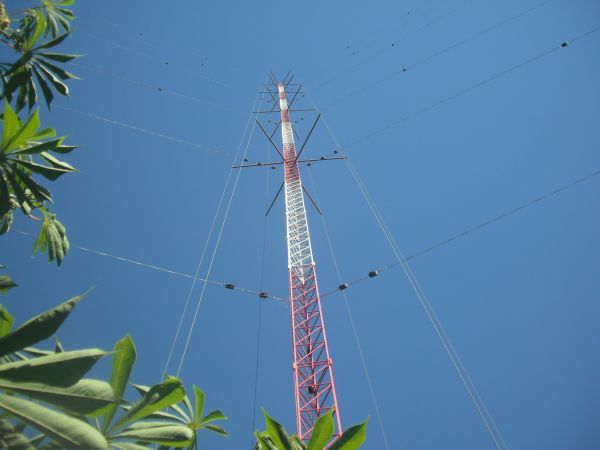

Mast with cage of six ropes.
Stays with egg insulators
|
 |
 |

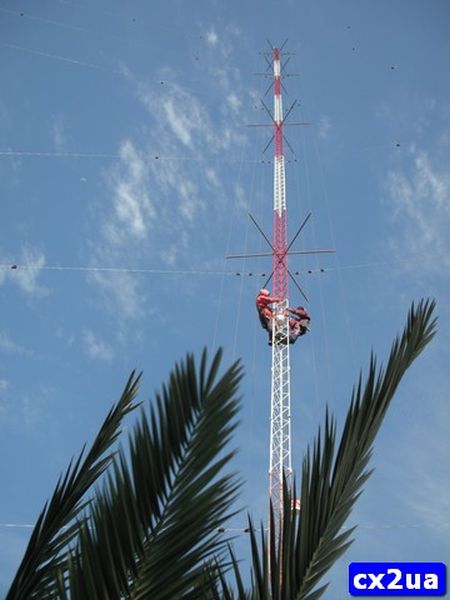

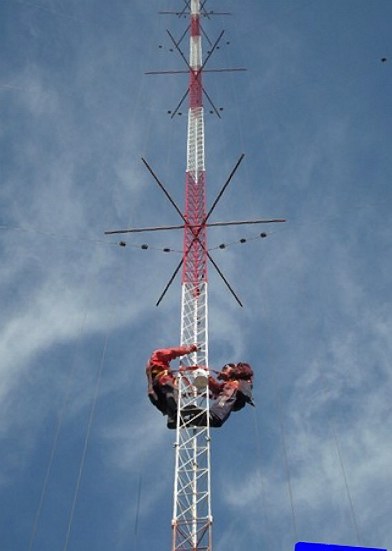

Two painters painting the mast
|
|
 |

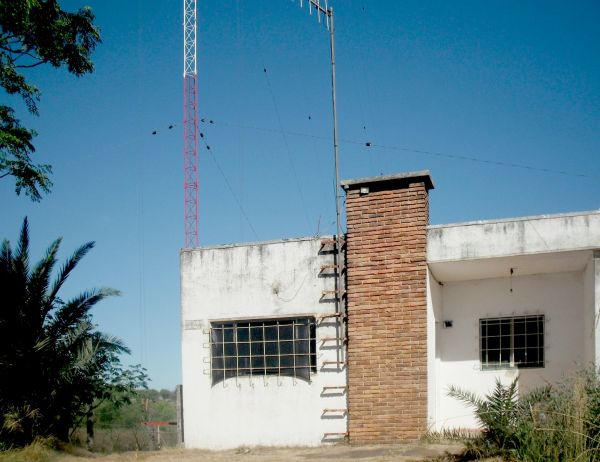

Antenna tuning hut with mast
|
 |

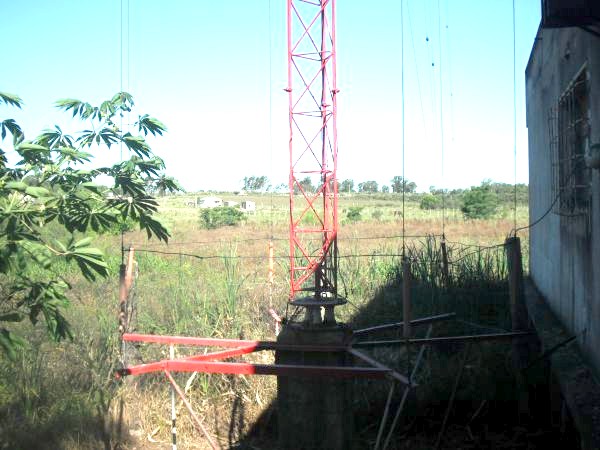

Output of the antenna tuning hut:
the cage is fed
|
 |
Mast with cage of six ropes.
|
 |

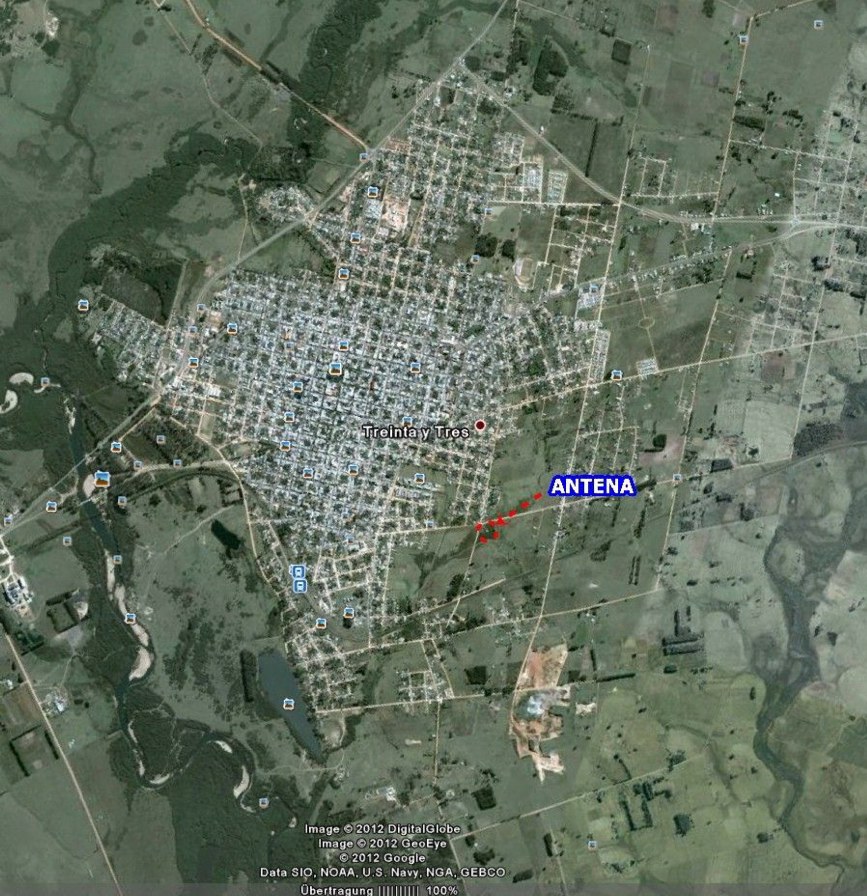

Satellite photo: Antenna Treinta y tres CW45 33°14'16.03" S; 54°22'16.23" W
|
|
|
 |
|
